20mm Outdoor full color LED display



Summary



1) Ultra-High brightness, Up to 7000, 7500 and 8000nits

2) Anti-sunlight, anti-direct light or anti-glare,

3) High refresh rate and high color uniformity,

4) IP65 Rating waterproof and dustproof,

5) Energy-saving

6) Super light weight and easy to install

7) Able to work under super low temperature, as low as minus 20℃

8) A wide range of pixel pitch models available: 10mm, 12mm, 16mm, 20mm, 25mm and 31.5mm.

9) Extremely suitable for outdoor advertising





Features in details





Ultra-High brightness



Up to 7000, 7500 and 8000nits ultra-High brightness makes the LED display feature anti-sunlight or anti-glare and capable of display the picture and text even under extremely strong sunlight condition. High temperature resistant material on the surface of the module is also to absorb direct light, reduce glare and improve contrast ratio.





High refresh rate and high color uniformity



Constant current driving LED module (IC) and specially designed controller make LED display feature high refresh rate and high color uniformity.





IP65 Rating waterproof



IP65 rating waterproof and dustproof protection grade enable the LED display work well enough under outdoor all weather environment and bad condition with dust.





Energy-saving



Constant current driving does reduce power consumption of LED display. And low power consumption helps users save energy significantly.





Super light weight and easy to install



Aluminum material of cabinet makes LED display easy to carry, install and service or maintain.





Able to work under super low temperature



It is able to work under super low temperature, as low as minus 20℃. Customized design can even let it work under temperature lower than minus 20℃ like in North Russia.





A wide range of pixel pitch models available



We provide you a wide range of pixel pitch of outdoor LED display models to meet your various kinds of installation and application needs, including 10mm, 12mm, 16mm, 20mm, 25mm and 31.5mm.

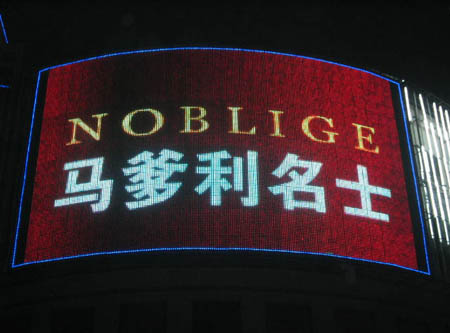

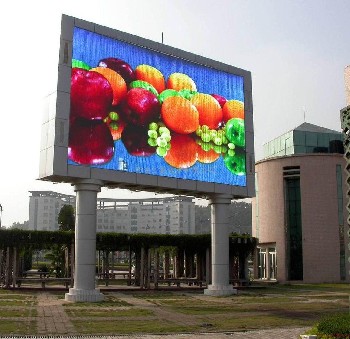

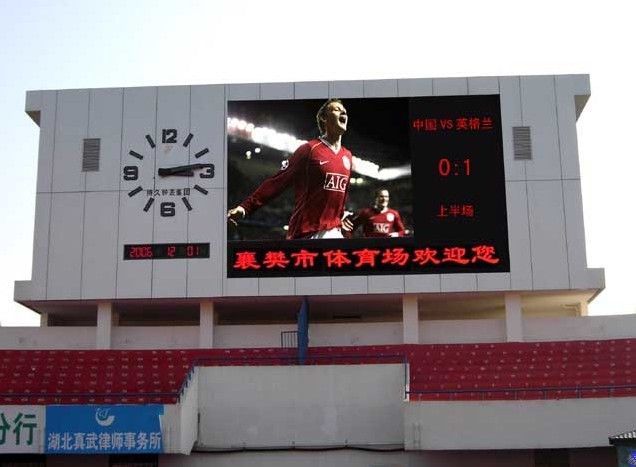

Extremely suitable for outdoor advertising



The outdoor LED display models are specially designed for outdoor use. They are extremely suitable for application fields of outdoor advertising, billboard or hoarding, traffic sign and information bulletin board, etc….

























Technological Parameters:
Model	F10	F12	F16	F20
Product name	Outdoor full color  LED display
Pixel pitch	10mm	12mm	16mm	20mm
Size of module	160*160	192*192	256*256	320*320
Size of standard cabinet	960 (L) x 960(H) mm	768(L) x 768(H) mm	1280 (L) x 960(H) mm	1280 (L) x 960(H) mm
Pixel density	10,000 dots/m²	6,944 dots/m²	3,906 dots/m²	2,500dots/m²
Resolution of module	16*16	16*16	16*16	16*8
Brightness	≥7500CD / m²	≥7000CD / m²	≥8000CD / m²	≥7000CD / m²
LED configuration	1R1PG1PB	1R1G1B	2R1PG1PB	2R1G1B
LED Encapsulation (LED type)	DIP346	DIP346	DIP546	DIP346
Horizontal view angle	≥ 110°	≥ 110°	≥ 110°	≥ 110°
Vertical view angle	≥ 50°	≥ 50°	≥ 50°	≥ 50°
Optimal view distance	8-75M	8-100M	15-140M	20-160M
MTBF	≥10,000 hours	≥10,000 hours	≥10,000 hours	≥10,000 hours
Lifespan	75,000 ~100,000 hours	75,000 ~100,000 hours	75,000 ~100,000 hours	75,000 ~100,000 hours
Refresh rate	≥400HZ	≥400HZ	≥400HZ	≥400HZ
Driving mode	Constant current driving ,static latch
Signal Interface	DVI
Input signal	RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc
Failed LED rate	<0.0001	<0.0001	<0.0001	<0.0001
Power supply	110 / 220 V AC , 50/60 Hz
Average power consumption	600 Watts /m2	500 Watts /m2	400 Watts /m2	300 Watts /m2
Max. power consumption	1000 Watts /m2	700 Watts /m2	900 Watts /m2	800 Watts /m2
Cabinet Material	Aluminum &steel optional
IP rating	IP65 Waterproof & dustproof
Operation temperature	Minus 20℃~60℃	Minus 20℃~60℃	Minus 20℃~60℃	Minus 20℃~60℃
Storage temperature	Minus 40℃~85℃	Minus 40℃~85℃	Minus 40℃~85℃	Minus 40℃~85℃
Operation  humidity	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH
Storage humidity	30%~60%RH	30%~60%RH	30%~60%RH	30%~60%RH
